Equipment

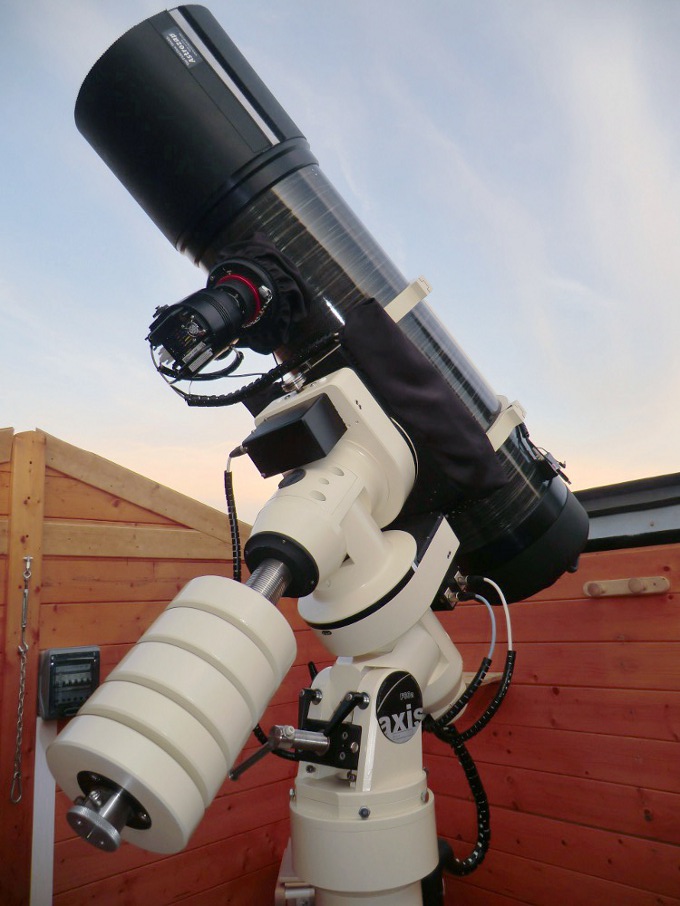

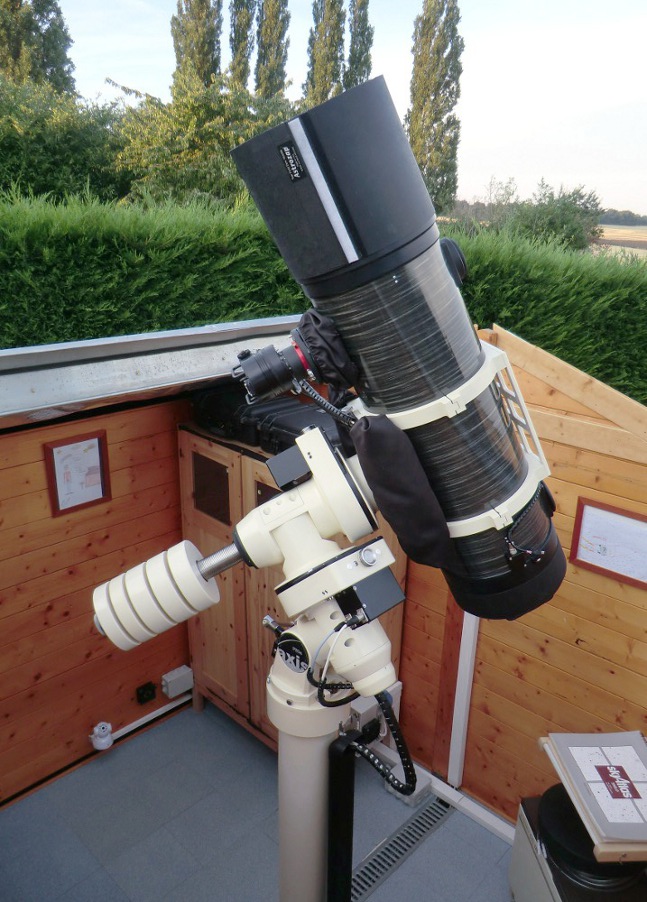

A
tube of Newtonian / Cassegrain Axis Instruments including
Conf. Newton T 300 mm with Keller reducer / flattener 3 ", focal
length : 1140, F/D
3.8
Total weight : + / - 35
kg.
Screws all stainless
steel.
Galvanic protection (paint
protection).
2.5mm carbon tube,
size / diameter : 350x355mm
fiber
in both directions, Epoxy paint internal and external gloss "Graphite
loaded".
OD max. necklaces out of the tube : 371mm.
Rear handle overall length :
1178mm
By fog, tight editing,
matte black color.
Against
removable weights (tube) for PO and balancing barrel : 5 kg.
Focuser oversized exit
3''.
Robofocus and RS232
cabling.
An
adapter ring 2'' 3'' in the dimension corresponding to a MAP
ST7.
Spider and
polished stainless steel perforated.
Setting
the secondary support from 3 screws at 120 °, with a longitudinal
handling.
Secondary mirror of Newton
minor axis 110 mm. From Zen,
dating from 2008. Stuck.
Secondary
resistance on Newton, with wiring and control box, from 0.01 to 1w
12v.
Primary
mirror Zen, 2004. Mounted on 9 points with
center ball turret. Adjusting
screw 3, and 3 others for tightening, housing.
Breakdowns:
3, adjustable speed by the common housing to electric heating resistors, wiring,
12v power supply.
Cassegrain
secondary support, motorized or manual (possible by removing the
engine).
Implemented by indexing.
Cassegrain mirror, fixing ring.
From Zen, F/D result : 20,
obstruction : 0.2. about.
PO Cassegrain :
Axis Type 2'' manual instruments.
Secondary
support for additional Cassegrain to an F/D between 14 and 16.
Two rings, with
their backs, a multi-hole plate.
Shift cables on the side
rings.
Collimation
Tool (flowing in rings with iris diameter 2mm).
Frame F60 Axis
Instruments including
Stainless
Steel Screws (except mounting cradles of worm casings on AD and Delta. Protected
by paint).
CP :
3x12kg, 3x8kg + CP bar stainless steel threaded 12 kg.
Type
controller MCMT 32, protocol including parking and its recovery, 30v
power supply and cabling.
Polar finder, Vixen SX,
graduated, lit.
Amplitude
settings in Latitude : 70 ° to the equator, longitude + / - 10 °.
Periodic error + / - 3'' P to P.
Quality
monitoring + / - 0.2'' RMS (indicative figures).
Pointing
error : + / - 10'' arc of 60 ° stroke amplitude (indicative
figures).
Epoxy. RAL1015
standard, Ivory Satin.
CCD
ST7-XME-delux free of defective
column, 2009.
Resulting
field with Keller 2 ", 27' x 17', Sampliging : 2".
and ST8-XME, 2013.
Resulting
field with Keller 3 ", 42' x 28', Sampliging : 1.64".
Software acquisition and
management
PRISM V10
(Sessions Automatic, Semi-Remote, Remote)
Astrometric measurements
ASTROMETRICA
Basic Software
GIMP
All Sky
